Description

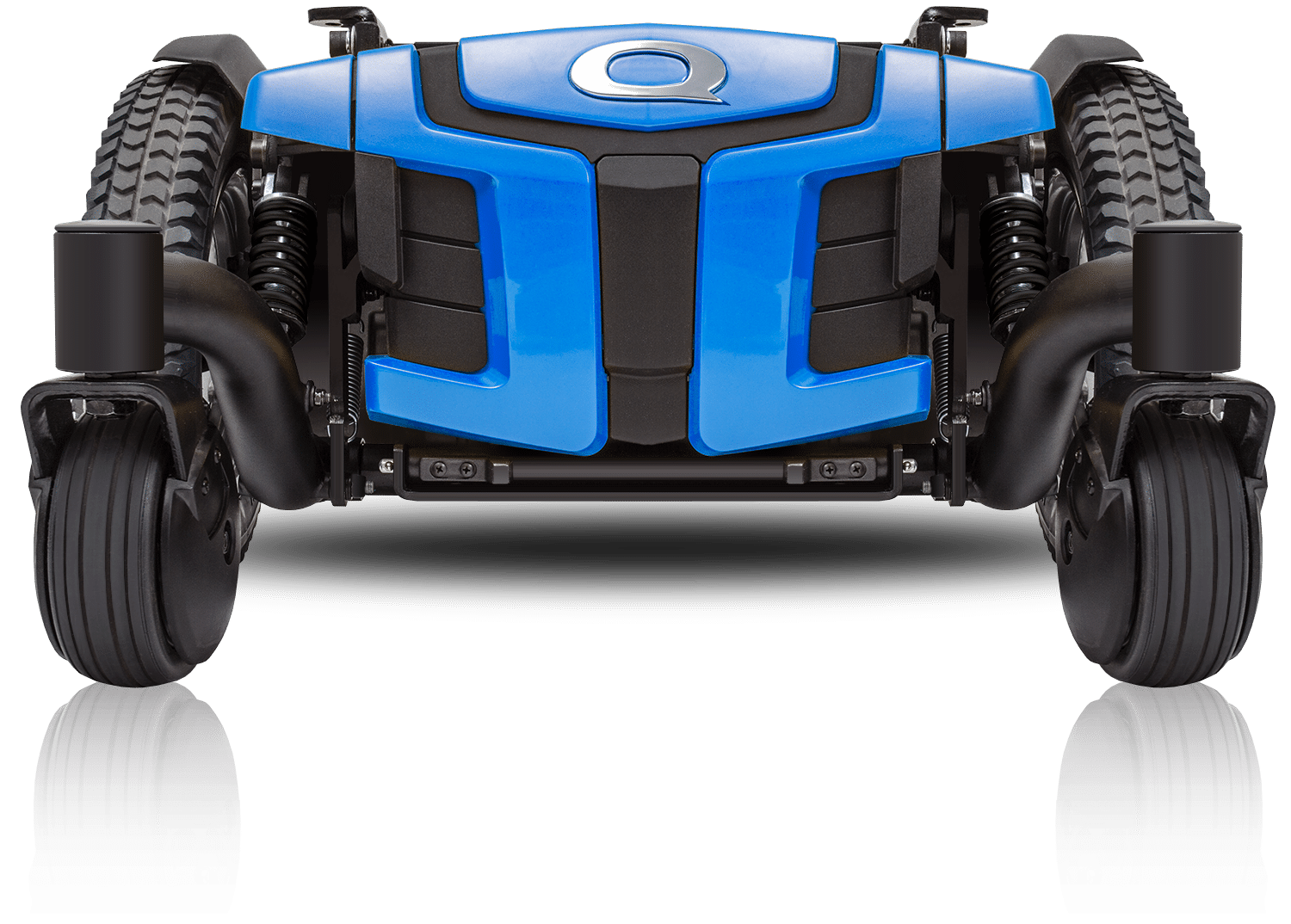

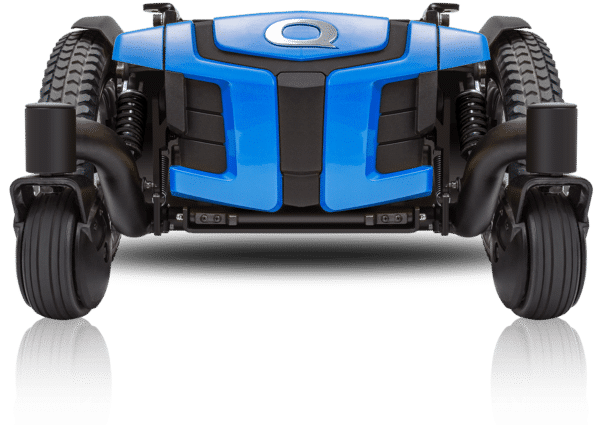

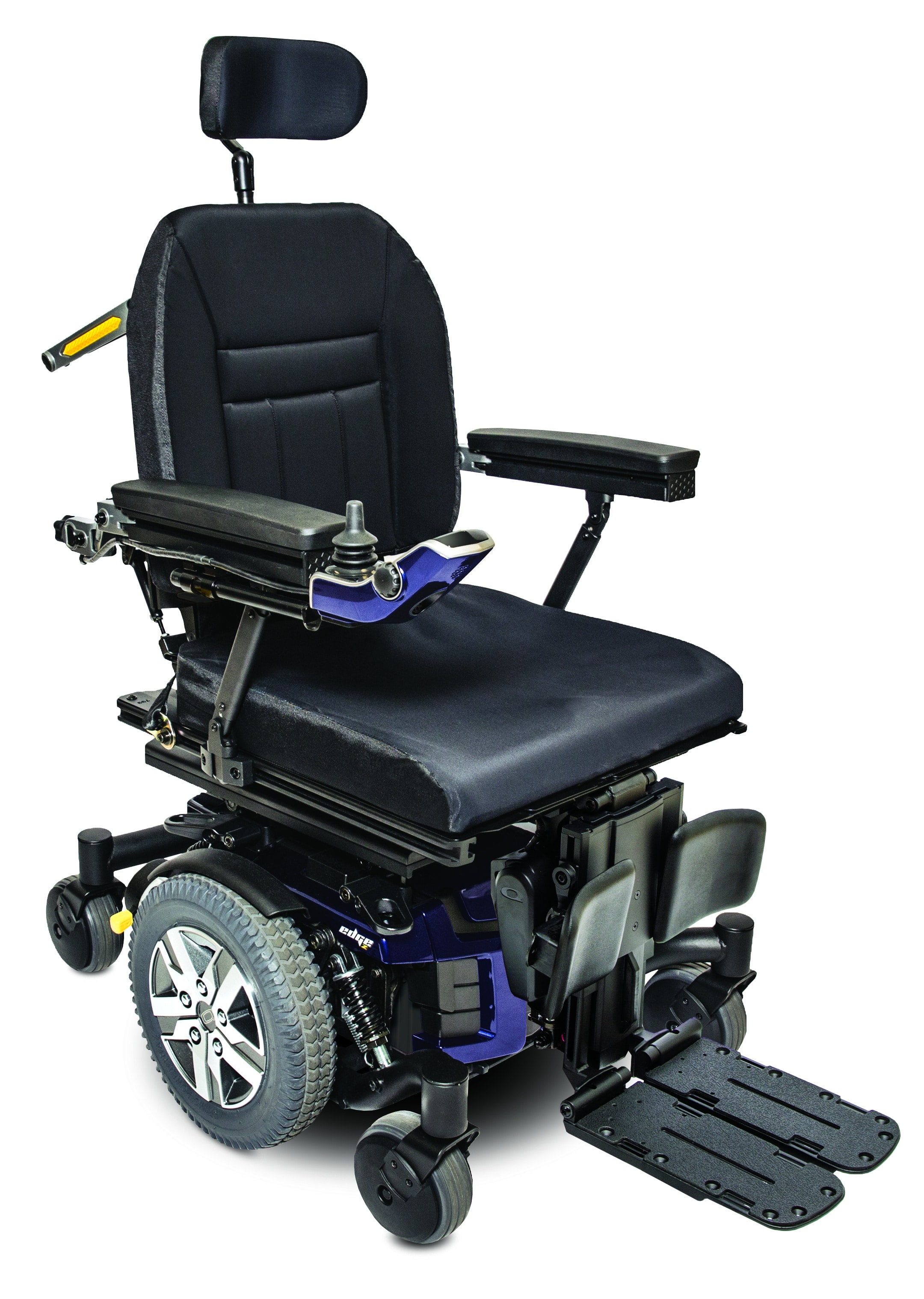

The Quantum Q6 Edge Z
The Quantum Q6 Edge Z utilizes powerful 4-pole motors for maximum torque and Mid-wheel 6 design for aggressive outdoor performance and precision indoor manoeuvrability. The Q6 Edge Z accepts a broad range of exclusive seating and electronic options for unmatched adaptability and rehab capability, and is available with our iLevel technology.
Features:
▪ Mid-Wheel 6 allows six wheels on the ground for maximum stability
▪ Low impact OMNI-Casters (nylon, spherical-shaped casters) on front and rear prevent wheel hang-ups
▪ iLevel option available with up to 12” of seat elevation at walking speed (up to 3.5 mph)
▪ ATX Suspension (Active-Trac with extra stability) incorporates front OMNI-Casters and semi-independent rear casters beam for enhanced performance over more varied terrain.
Options:
▪ iLevel 12” power adjustable seat height
▪ Q-Logic 3 EX Drive Controls
▪ TRU-Balance 3 Seating
▪ 8 mph motor package
▪ TRU-Balance 3 Power Tilt
▪ TRU-Balance 3 Power Recline
Colours:
Pretty in Pink
Lime Light
Yellow Blaze
Deep Purple
Orange Crush
Electric Blue
Red Corvette
Midnight Blue
White Satin
Grey Street
Back in Black
Specifications*
▪ WEIGHT CAPACITY: 21 stone 6 lbs. (136 kg)
▪ MAXIMUM SPEED: Up to 6 mph (standard) Up to 4 mph (optional) Up to 8 mph (optional)
▪ GROUND CLEARANCE: 76 mm (3”)
▪ TURNING RADIUS: 501 mm (19.75”)
▪ OVERALL SIZE: Length: 904 mm (35.6”) without front riggings. 1127 mm (44.4”) with front riggings. Width: 666 mm (26.25”)
▪ DRIVE WHEELS: 356 mm (14”) pneumatic or solid available
▪ CASTER WHEELS: Front: 152 mm (6”) solid. Rear: 152 mm (6”) solid.
▪ SUSPENSION: ATX Suspension (Active-Trac® with extra stability)
▪ COMPONENT WEIGHTS: Base: 143.5 lbs (65 kg) Batteries: 52 lbs (23.58 kg) each
▪ DRIVETRAIN: 4-pole, Mid-wheel 6® drive
▪ BRAKES: “Intelligent Braking” electronic regenerative, disc park brake
▪ BATTERIES: Two 12-volt, deep-cycle 73 Ah (standard)
▪ BATTERY CHARGER: 8-amp, Off-board
SEATING SIZES
▪ TRU-Balance 3 Static Seat: Width: 12-24” Depth: 12-24”
▪ TRU-Balance 3 Power Tilt: Width: 12-24” Depth: 14-24”
▪ TRU-Balance 3 Tilt and iLevel: Width: 12-24” Depth: 12-24”
SEAT-TO-FLOOR HEIGHTS
▪ TRU-Balance 3 Static Seat: 16.5-18.5”
▪ TRU-Balance 3 Power Tilt: 18.125-20.125”
▪ TRU-Balance 3 Tilt & iLevel: 19.75-21.375”
*Please note: The specification details above are a guide using standard sized chair. Your options and requirements could potentially change some specifications accordingly.
Contact us for more information.
