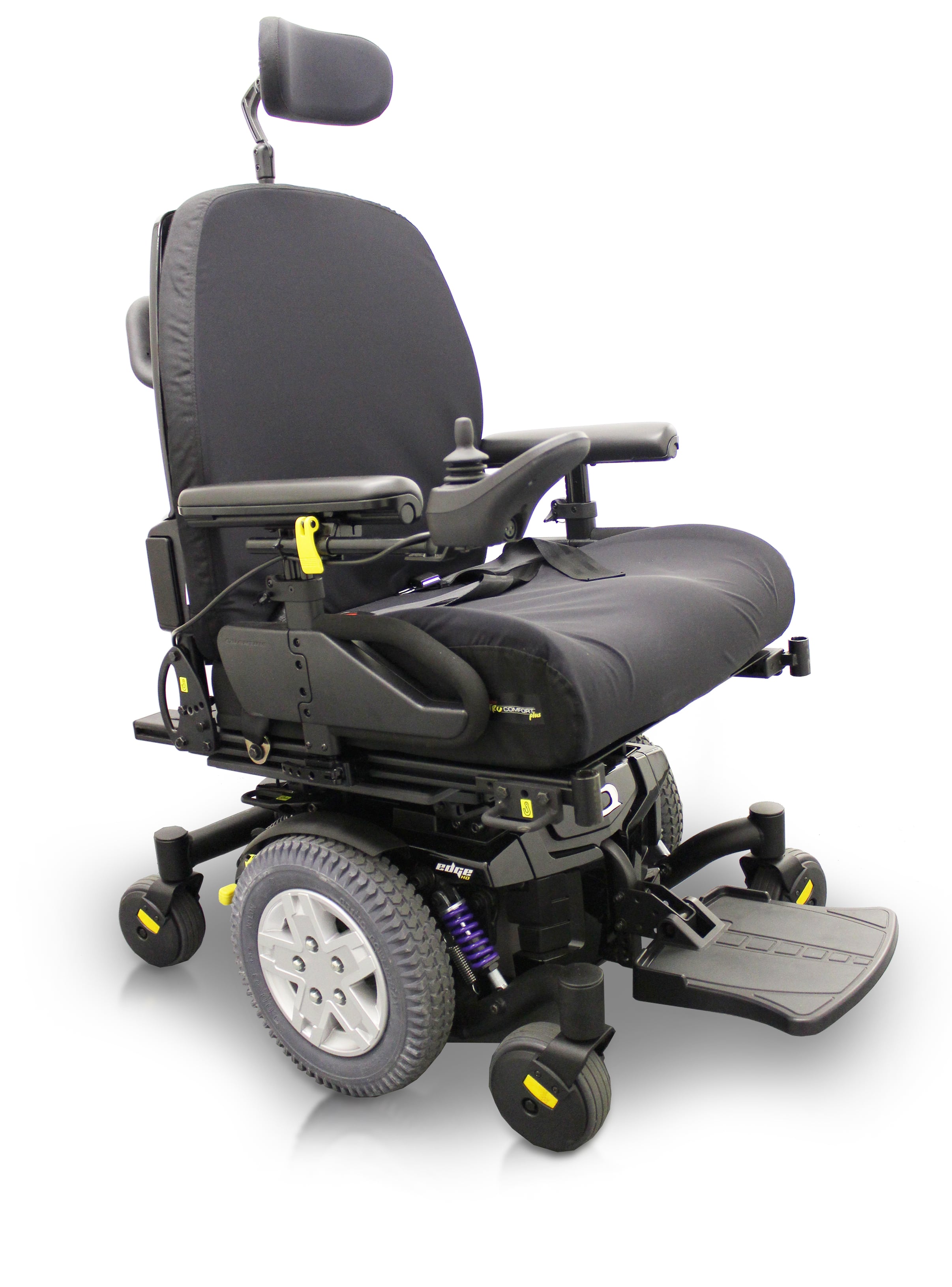

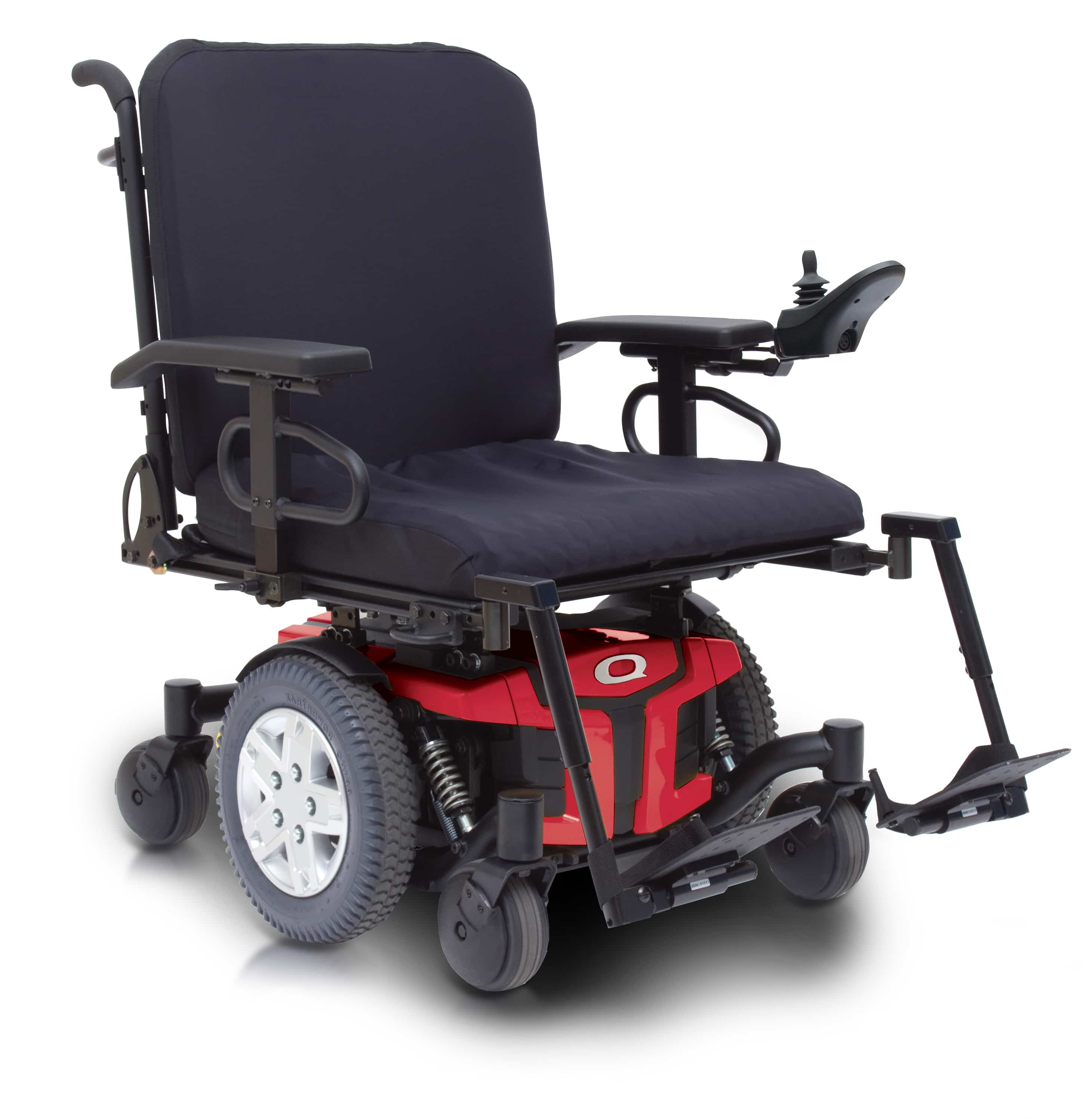

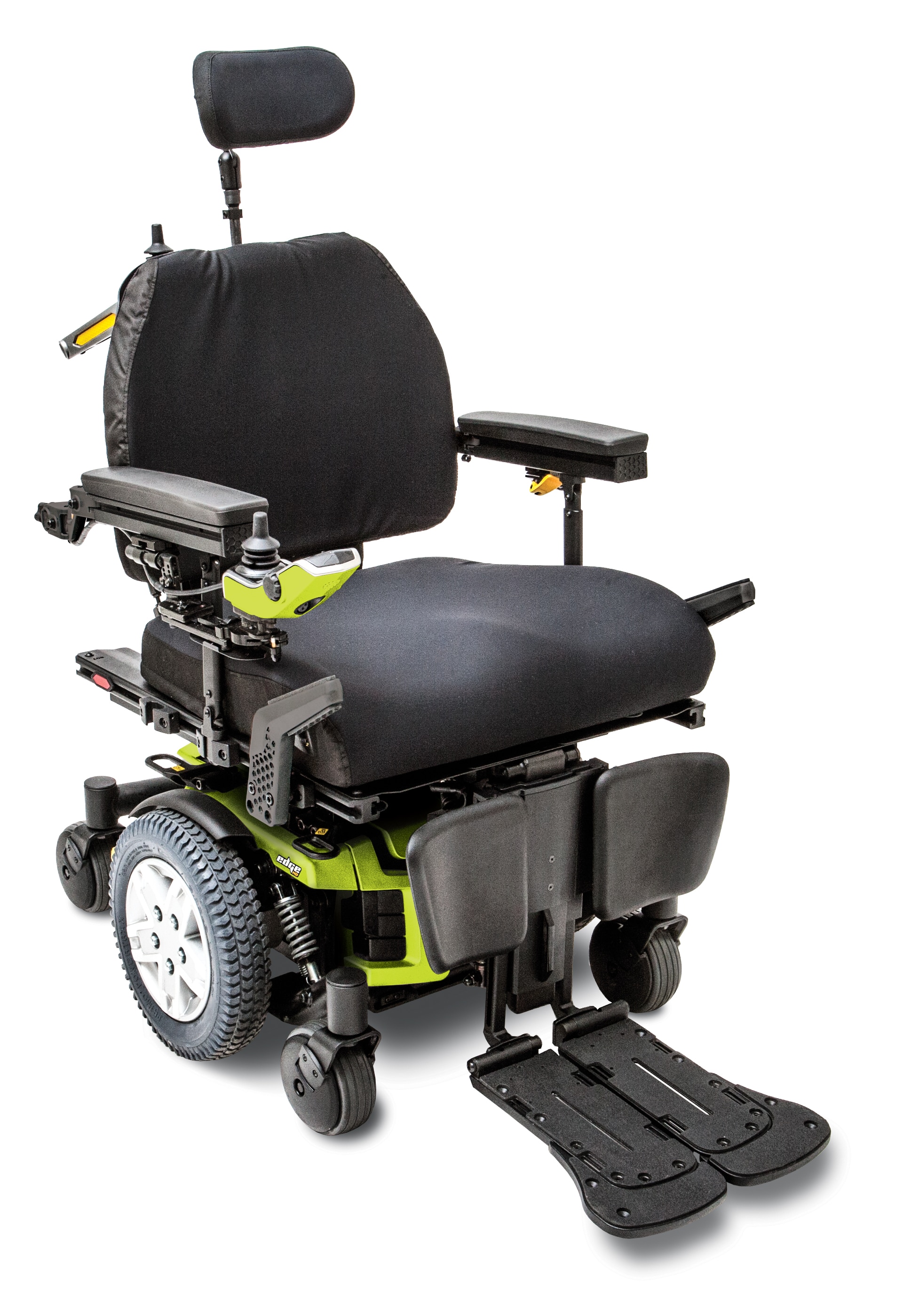

The Quantum Q6 Edge HD
With features like standard 4-pole motors, Mid-Wheel 6 Drive Design and ATX Suspension, the Quantum Q6 Edge HD is engineered to meet the performance needs of the most active user. The Quantum Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with our iLevel technology.
Features:
Mid-Wheel 6 allows six wheels on the ground for maximum stability
Low impact OMNI-Casters (nylon, spherical-shaped casters) on front and rear prevent wheel hang-ups
iLevel option available with up to 10” of seat elevation at walking speed (up to 3.5 mph)
ATX Suspension (Active-Trac with extra stability) incorporates front OMNI-Casters and semi-independent rear casters beam for enhanced performance over more varied terrain.
Options:
iLevel® 10” power adjustable seat height
NE+ Drive Controls
Q-Logic 3 EX Drive Controls
R-Net Drive Controls
TRU-Balance® 3 HD Tilt, HD Recline and HD Tilt & Recline
USB mobile device charger
Swing-away joystick mount
LED fender lights
Colours:
Red Corvette
Midnight Blue
Orange Crush
Back in Black
Silver Bullet
Specifications*
- WEIGHT CAPACITY:
35 stone 10 lbs. (227 kg) with TRU-Balance® Bariatric Tilt/Synergy Seat
32 stone 2 lbs. (204 kg) with TRU-Balance® 3 HD Power Tilt
32 stone 10 lbs. (204 kg)
28 stone 8 lbs. (181 kg) with TRU-Balance® 10-inch Power Adjustable Heavy Duty Lift - MAXIMUM SPEED: Up to 4 mph
- GROUND CLEARANCE: 89 mm (3.5”) at motor, 76.2 mm (3”) at base frame, 63.5 mm (2.5”) at caster pivot
- TURNING RADIUS: 502 mm (19.75”)
- OVERALL SIZE: Length: 1247.5 mm (49.1”) with front rigging. 904.2 mm (35.6”) without front riggings. Width: 666.8 mm (26.25”)
- DRIVE WHEELS: 355.6 mm (14”) pneumatic or solid available
- CASTER WHEELS: Front: 152.4 mm (6”) solid. Rear: 152.4 mm (6”) solid.
- SUSPENSION: ATX Suspension (Active-Trac® with extra stability)
- COMPONENT WEIGHTS: Base: 143.5 lbs (65 kg). Batteries: 52 lbs (23.6 kg) each
- DRIVETRAIN: Two motor, Mid-wheel 6® drive
- BRAKES: “Intelligent Braking” electronic regenerative, disc park brake
- BATTERIES: Two 12-volt, deep-cycle 73 Ah Batteries
- BATTERY CHARGER: 8-amp, Off-board
- MAXIMUM OBSTACLE CLIMBING ABILITY: 88.9mm (3.5”)
SEATING SIZES
- Synergy®/Static Seat: Width: 20-32” Depth: 20-28”
TRU-Balance® 3 HD Power Tilt: Width: 20-32” Depth: 20-25”
TRU-Balance® 3 HD Lift & Tilt: Width: 20-24” Depth: 20-25”
SEAT-TO-FLOOR HEIGHTS
- Synergy®/Static Seat: 16.5-18.5”
TRU-Balance® 3 Power Tilt: 18.5-20.5”
TRU-Balance® 3 Tilt & iLevel®: 18.5-20.5”
*Please note: The specification details above are a guide using standard sized chair. Your options and requirements could potentially change some specifications accordingly.
