Description
The Quantum Edge 3 Stretto
The Quantum Edge 3 Stretto features a narrow width for outstanding manoeuvrability and SRS (Smooth Ride Suspension), making it the perfect indoor and outdoor chair. The Stretto is available with 12.5” or 14” drive wheels and optional 12” of iLevel power adjustable seat height.
Features
▪ SRS (Smooth Ride Suspension)

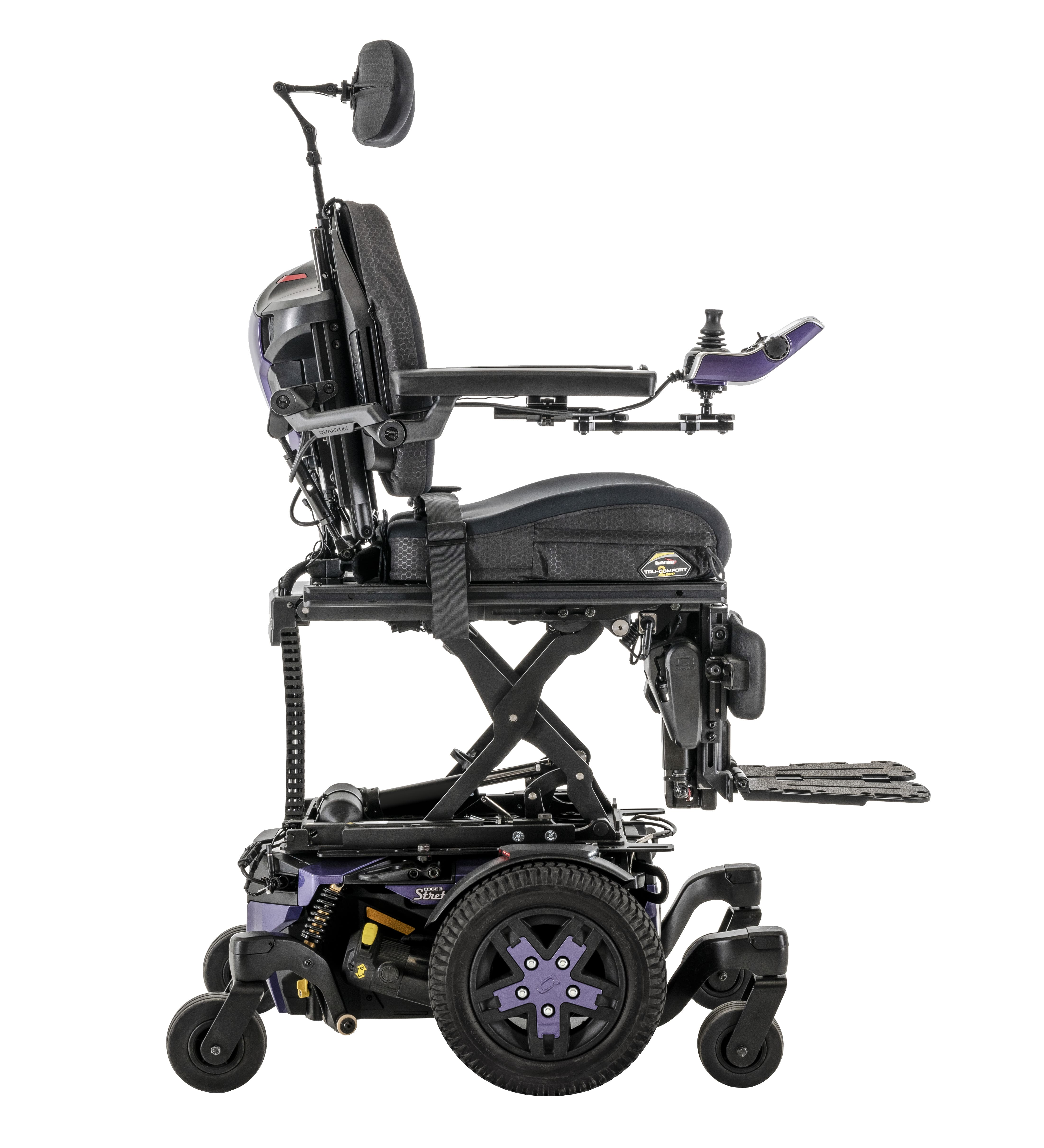

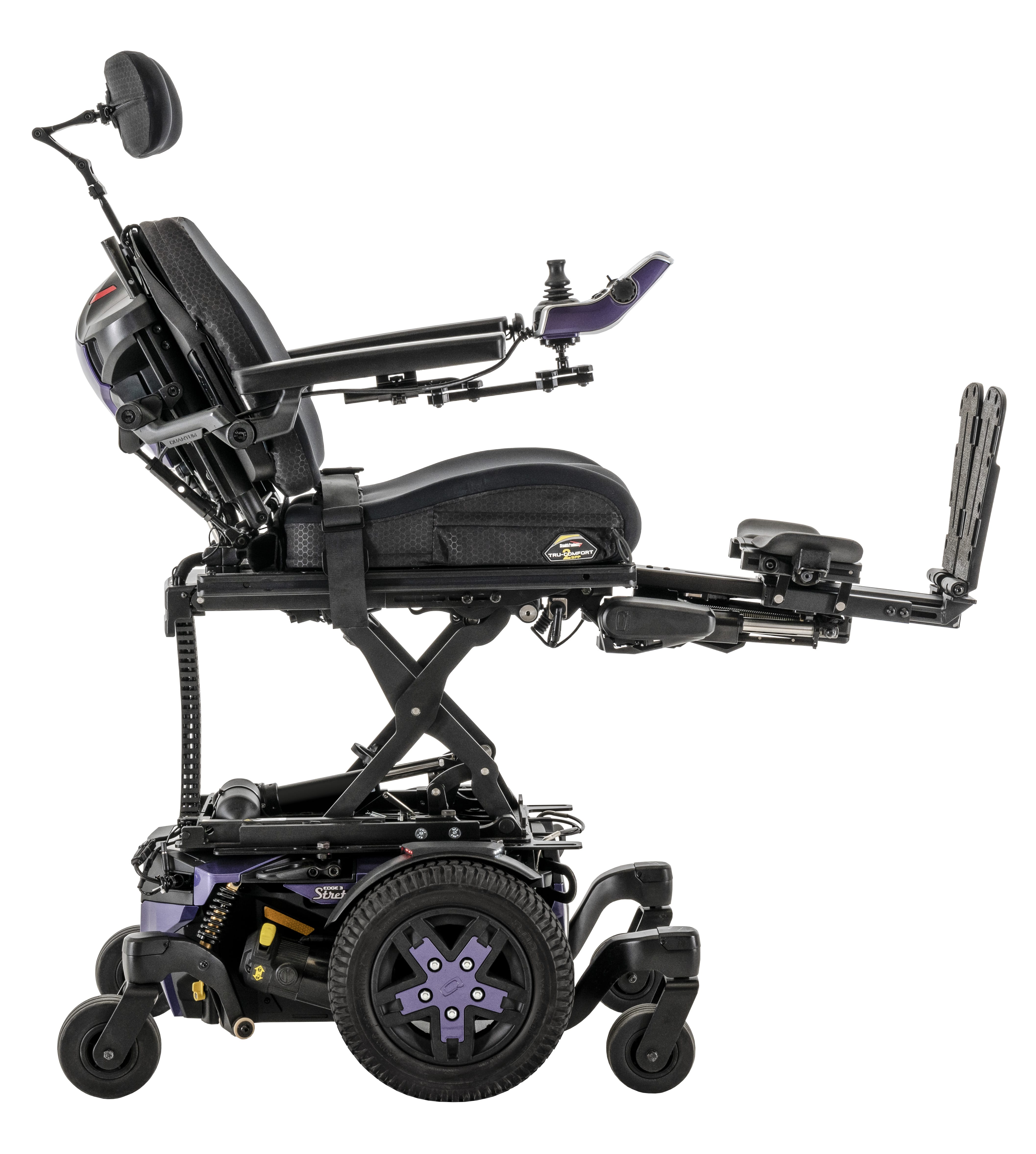

▪ iLevel® option available with up to 12” of seat elevation at walking speed (up to 3.5 mph)
▪ Fender lights and USB charger included
▪ 10 bold, contemporary colour choices
▪ Narrow 20.5” base width
Options
▪ iLevel® option allows 12” of seat elevation while at walking speed (3.5 mph)
▪ Q-Logic 3 EX Drive Controls
▪ TRU-Balance® 3 Seating
▪ Trilogy vent tray9
▪ Compact vent tray9
▪ 12” x 12” seat sizes with iLevel (SOF only)
Colours
BLUE JEAN
CHERRY BOMB
GREEN MACHINE
RASPBERRY BERET
SUGAR PLUM
Specifications
▪ DRIVE WHEELS: 14” or 12.5” pneumatic or flat free tires
▪ CASTER WHEELS: Front: 5” flat free, Rear: 6” flat free
▪ MAXIMUM SPEED*: Up to 6 mph, Up to 3.5 mph w/iLevel activated
▪ GROUND CLEARANCE: 2.9”
▪ TURNING RADIUS*: 24.5”
▪ OVERALL LENGTH (*2): 32.5” without front riggings
▪ BASE WIDTH: 21.75” with 14” drive wheels – 20.5” with 12.5” drive wheels

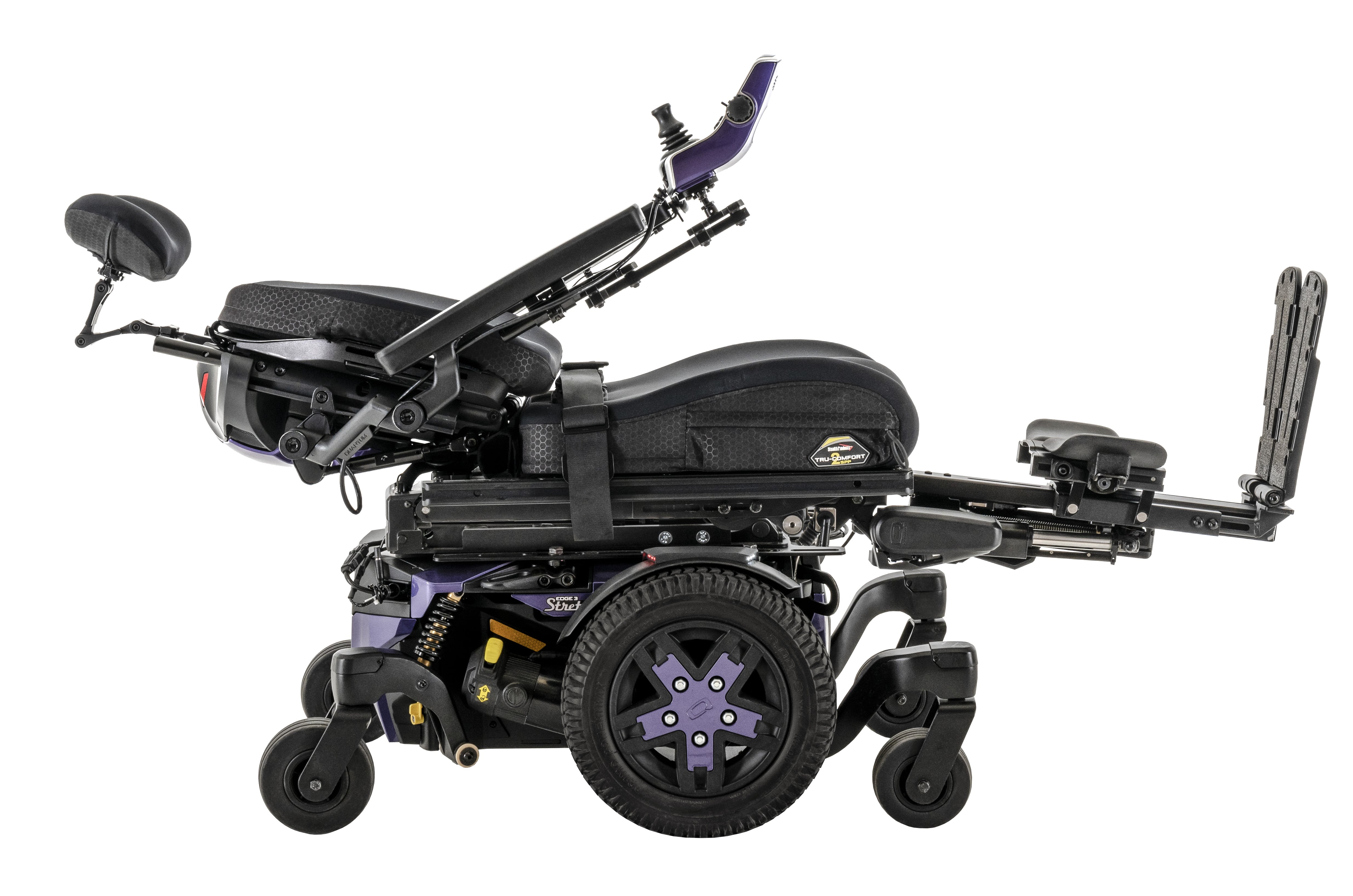

▪ MANUAL RECLINE*: Yes
▪ BATTERY SIZE*: 40 AH (2) or 62 AH (2)
▪ BATTERY WEIGHT*: 40 AH: 2 st 2lbs (13.6 kg) Each. 62 AH: 2 st.13lbs (19 kg) Each
▪ AVAILABLE ELECTRONICS*: 120A Q-Logic 3 EX. 75A Q-Logic NE+. 90A R-Net
▪ BATTERY CHARGER: 8A Off-board
▪ MOTOR PACKAGES: 2-Pole, Mid-Wheel 6
▪ WEIGHT CAPACITY*: 21 stone 6 lbs.
▪ BASE WEIGHT: 9 stone.
SEATING SIZES

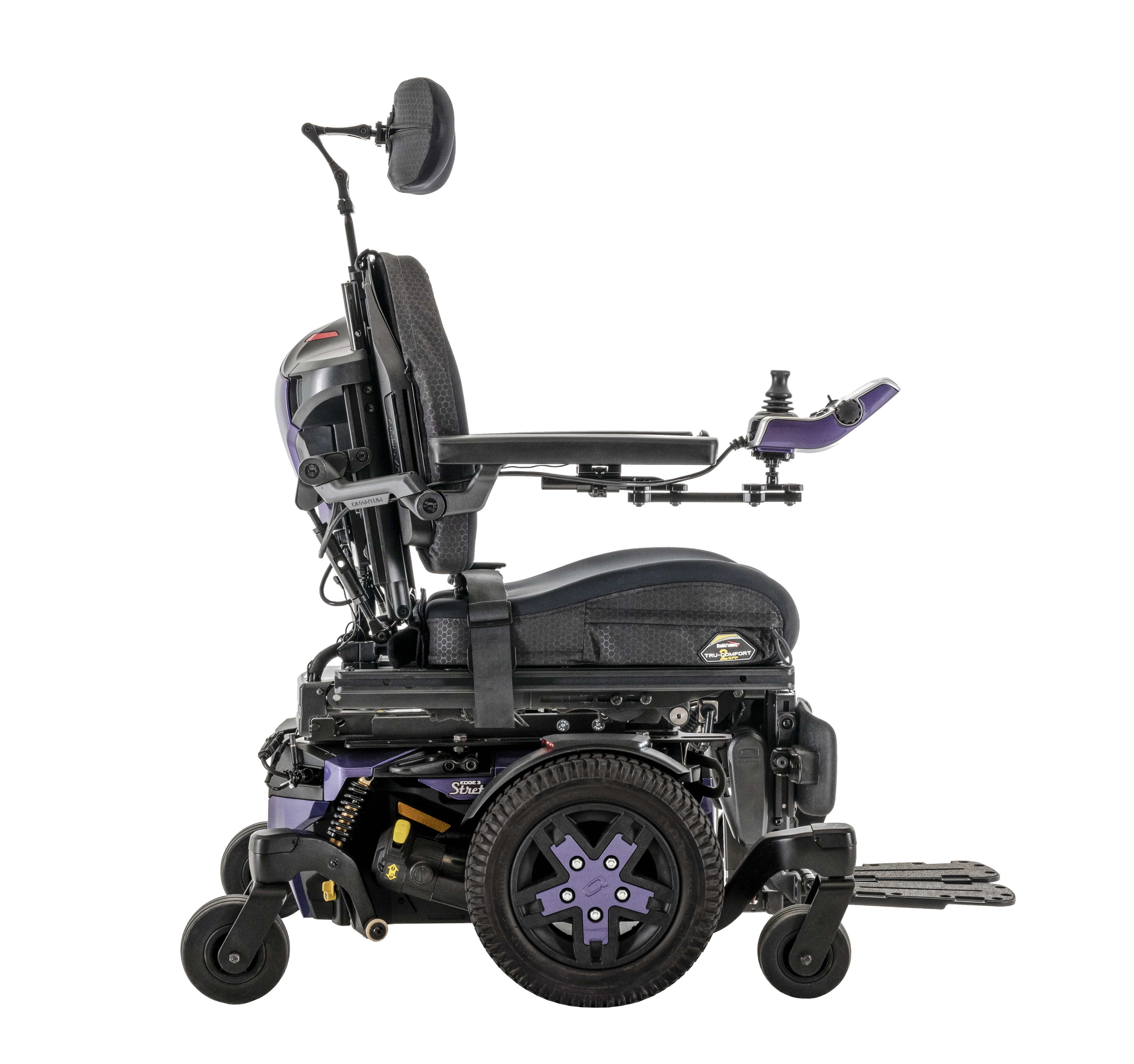

- TRU-Balance® 3 Static Seat: Width: 12-20” Depth: 12-20”
- TRU-Balance® 3 Power Tilt: Width: 12-20” Depth: 12-20”

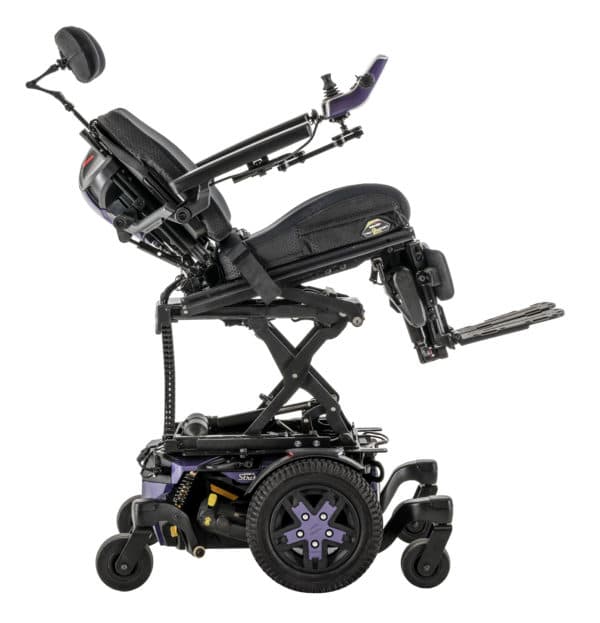

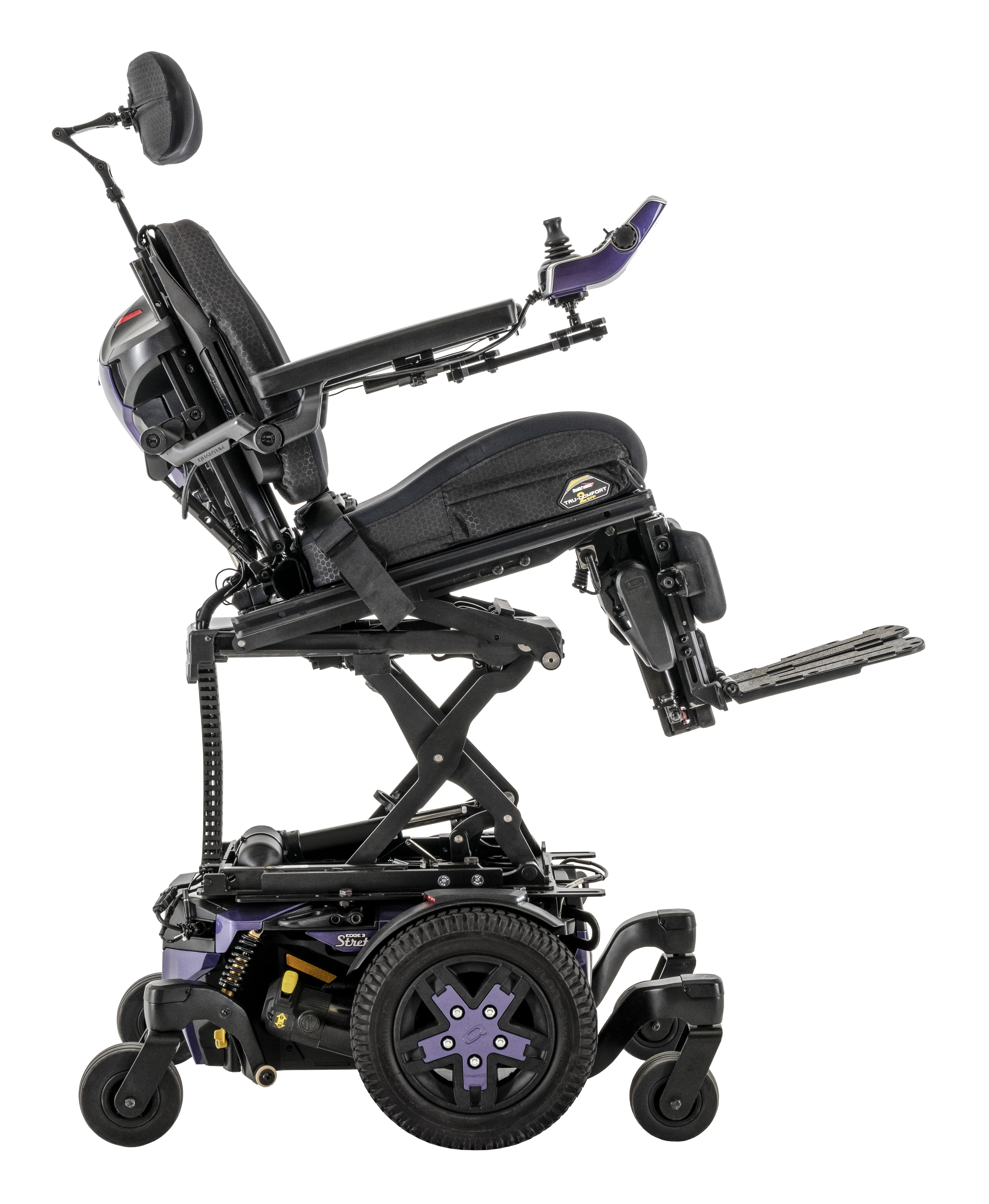

- TRU-Balance® 3 Tilt and iLevel®: Width: 12-20” Depth: 12-20”
- TRU-Balance® Flex Seating: Width: 15-20” Depth: 15-20” Smaller sizes coming soon.
SEAT-TO-FLOOR HEIGHTS
- TRU-Balance® 3 Static Seat*: 16-18”
- TRU-Balance® 3 Power Tilt*: 17.5-19.5”
- TRU-Balance® 3 Tilt & iLevel*: 17.5-19.5”
- TRU-Balance® Flex Seating: 16.5-18.25”
**Please note: The specification details above are a guide using standard sized chair. Your options and requirements could potentially change some specifications accordingly.
Contact us for more information.
