Description

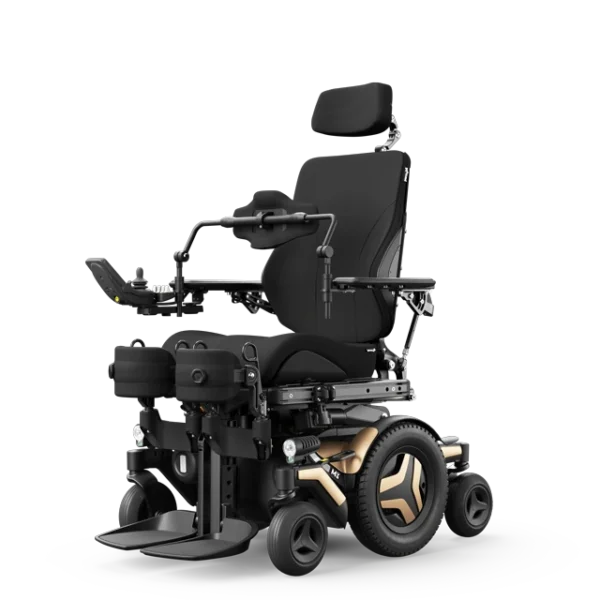

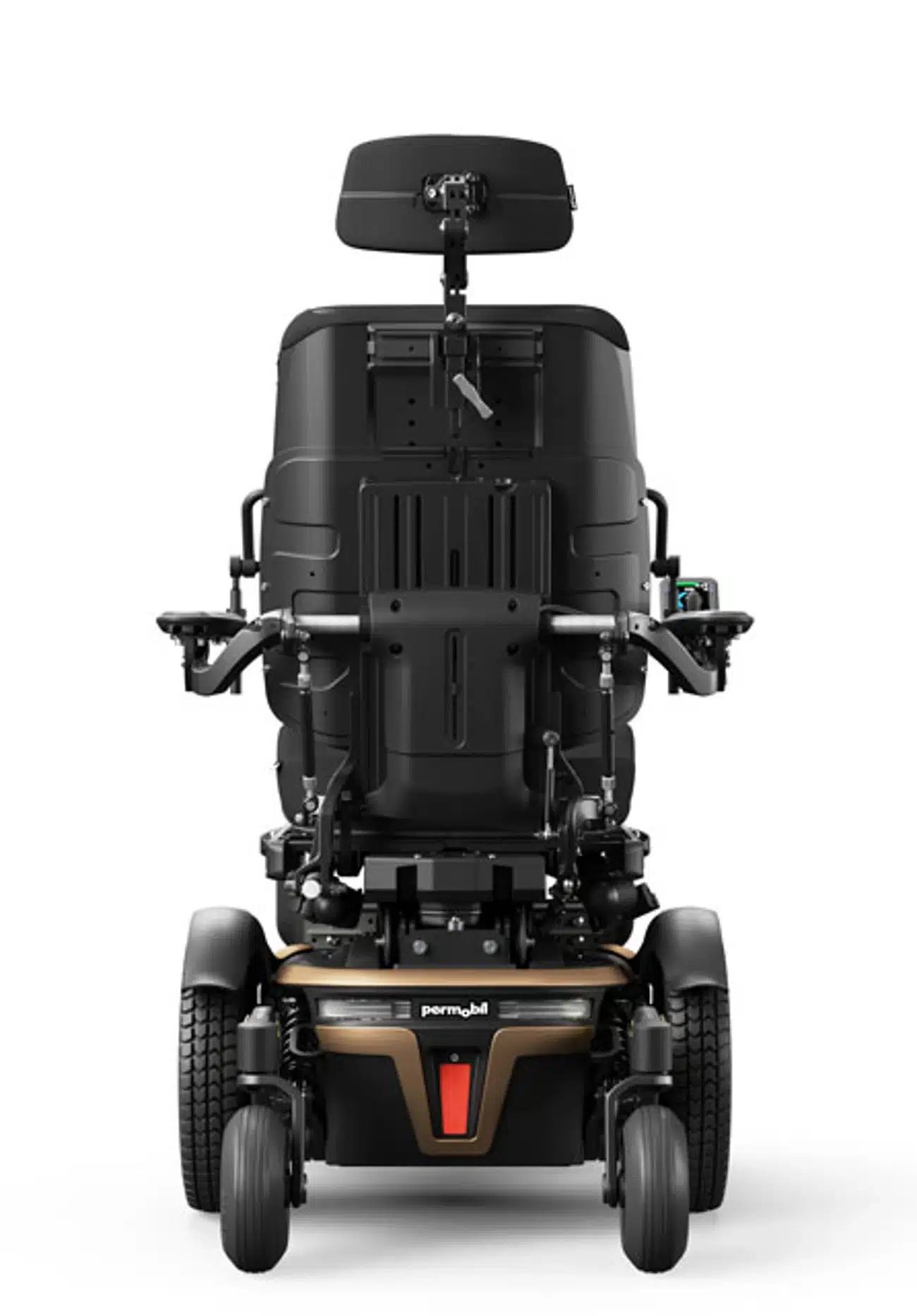

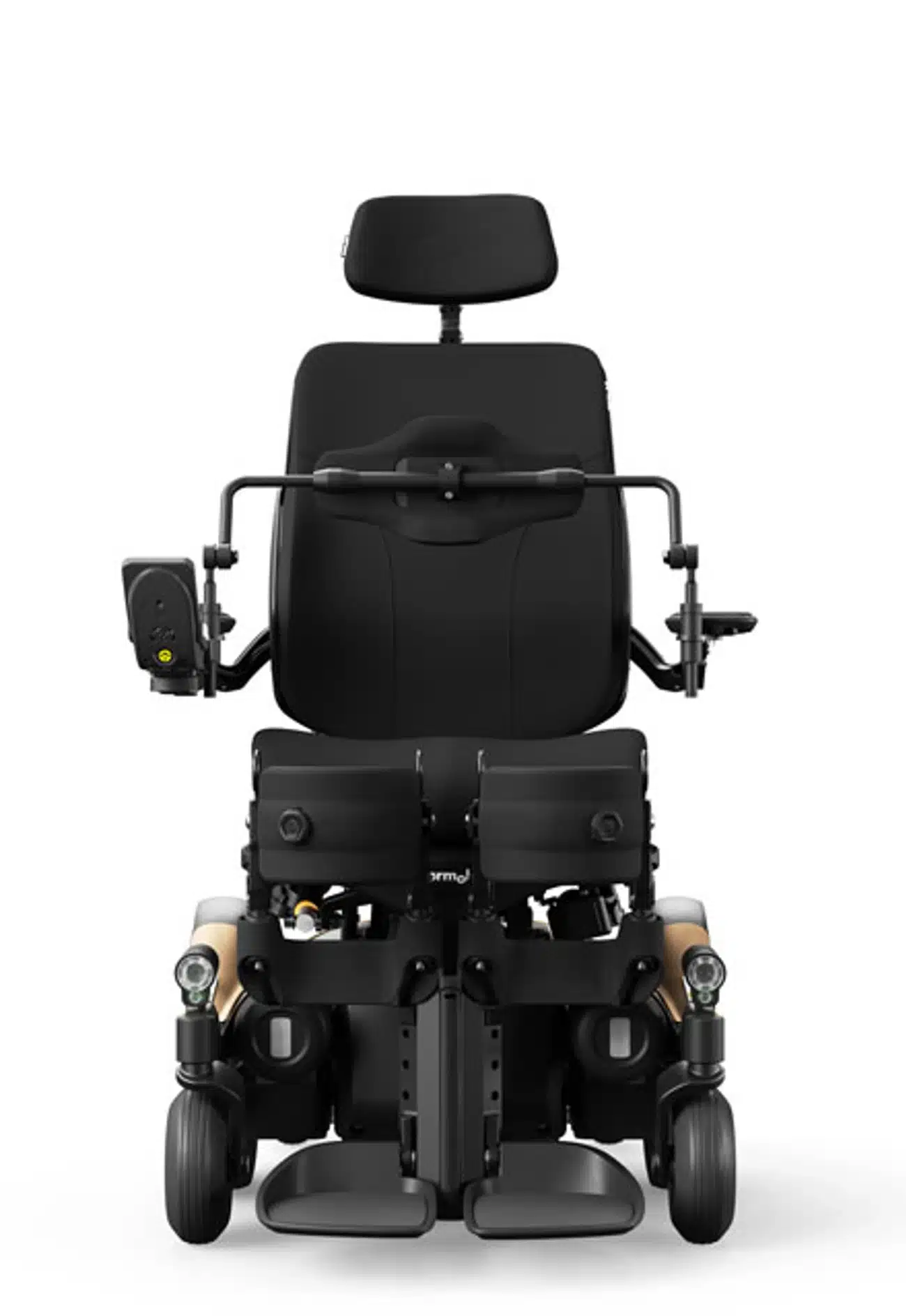

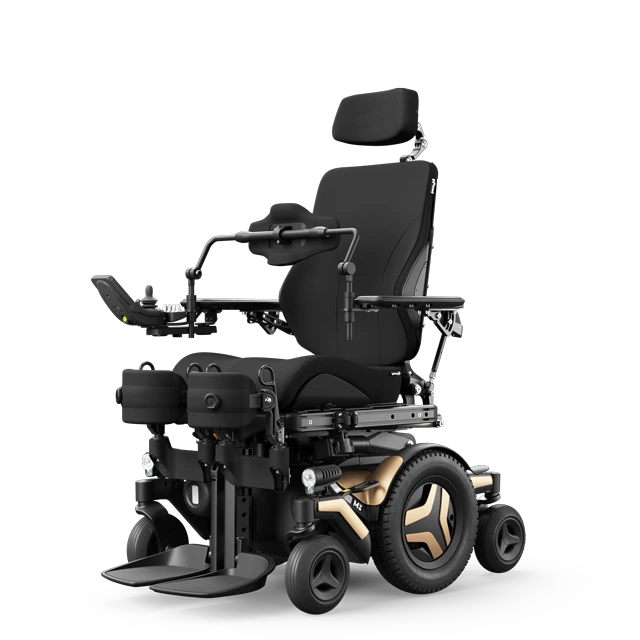

The Permobil M Corpus VS Stand Up Powered Wheelchair
The Permobil M Corpus VS power wheelchair brings a new dimension to power standing from Permobil, with the manoeuvrability of a mid-wheel drive base.
Stand without compromise: The M Corpus VS combines a compact base and suspension that provides stability, traction, and ride comfort for a best-in-class power standing experience with a mid-wheel base. Designed with the user in mind, the M Corpus VS allows easy adjustment of the standing sequence & positioning to your individual needs in real time.
From face-to-face interactions to improved health outcomes, the M Corpus VS empowers you to stand with confidence, while our light, swing-away knee supports offer improved comfort and flexible on-chair storage for greater independence.
Designed for independence: With a lightweight design, our swing-away knee supports can be moved and handled independently using the easy to reach release mechanism even with limited hand function. With two pad sizes, choose the option that best matches you and easily fine tune the pad placement as needed with the integrated BOA® dial* for optimal fit and comfort to your needs.
*BOA® Fit System delivers micro-adjustable, precision fit in a simple to use dial
Programming simplified: QuickConfig is a new innovative app designed for service technicians, clinicians, and providers that offers a simpler way to configure parameters and an intuitive interface to set up M Corpus VS with your preferred driving and seating characteristics and standing sequence.
Features:

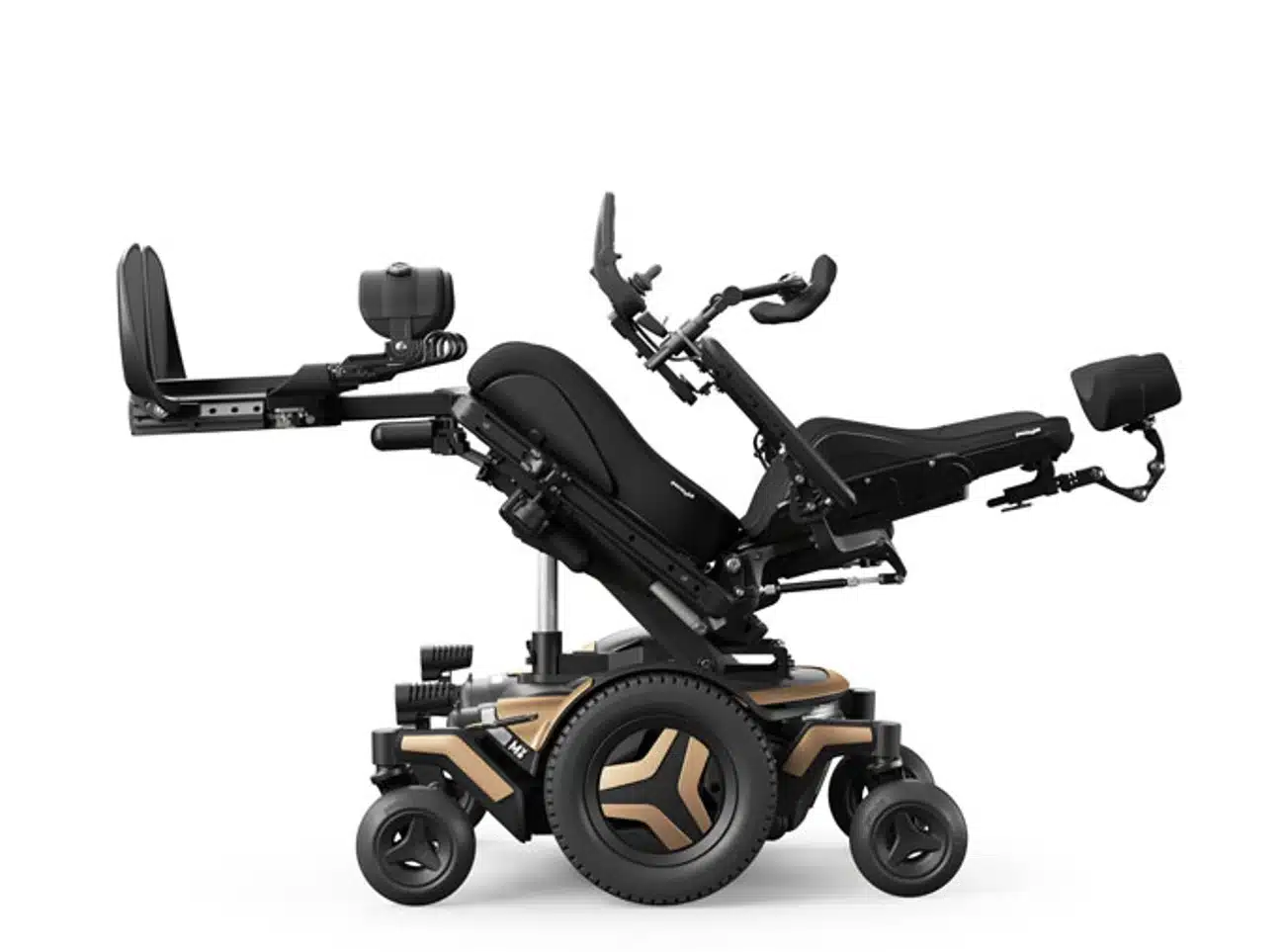

- 85-180° power recline
- Seat elevator Active Height 0 – 300 mm
- Posterior tilt 0-50°

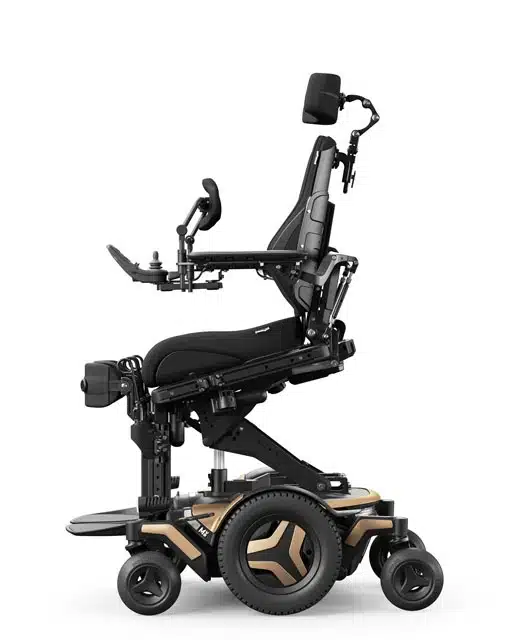

- Anterior tilt Active Reach 5-45°
M Corpus VS Specifications
- Max. speed 6 and 10 km/h
- Range (G24: 85 Ah batteries) 40 km*
- Max. user weight 120 kg
- Obstacle climbing (with run up) 50 mm (60 mm)
- Min. turning diameter 1310 mm
- Turning in corridor 1000 mm
- Suspension Dual link

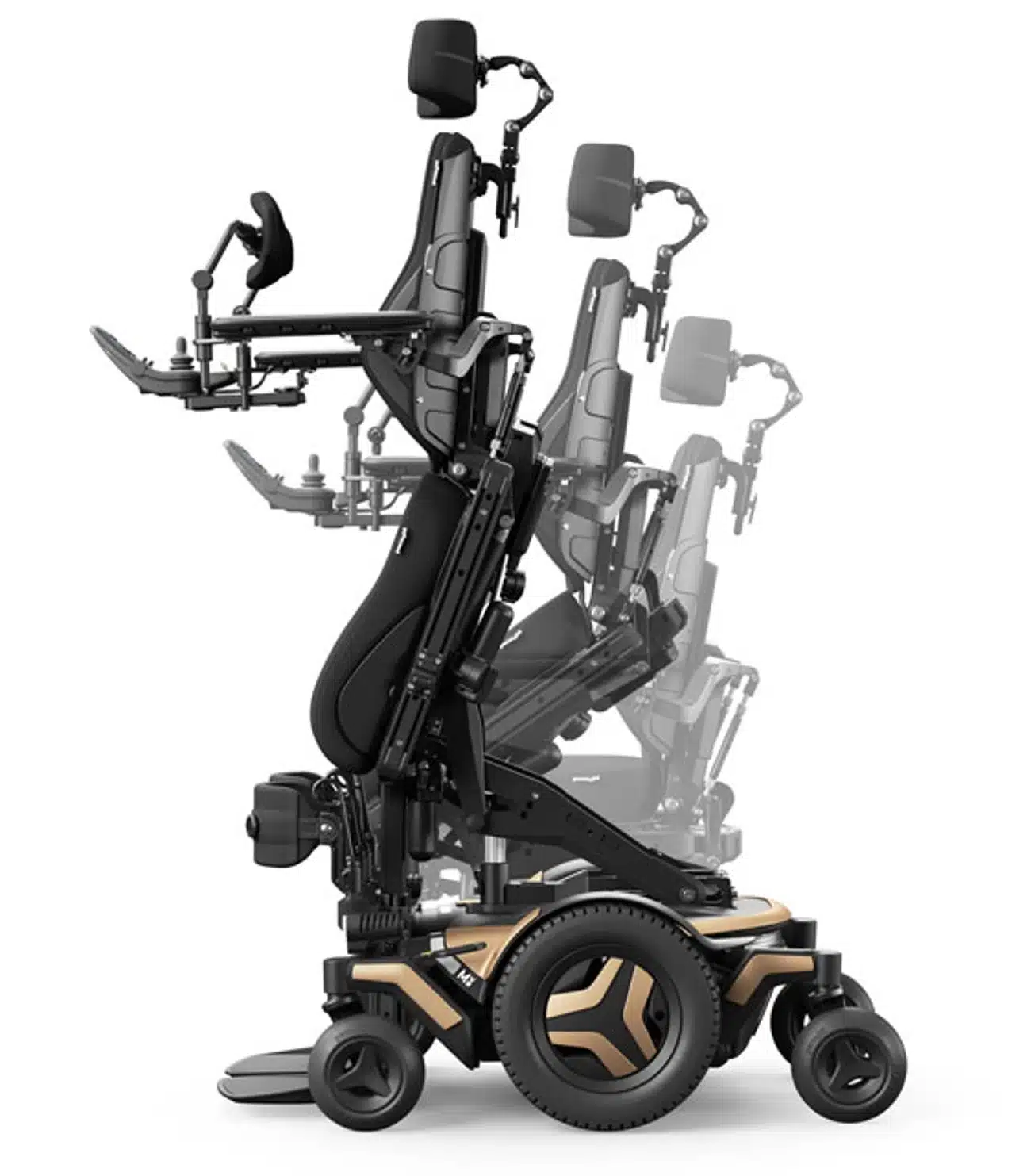

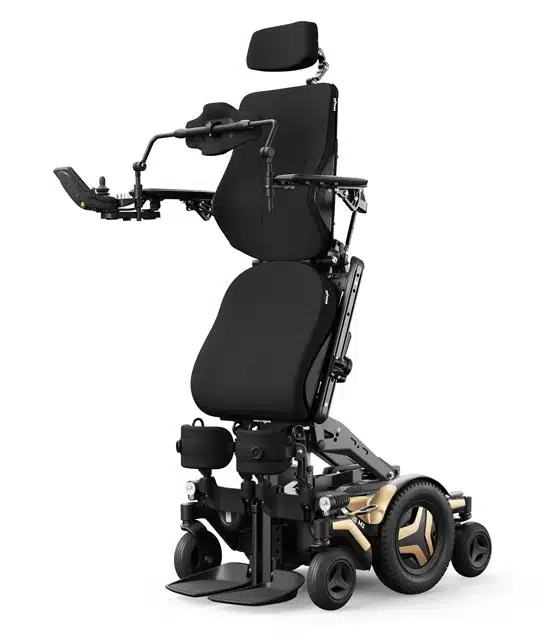

- Max. standing angle 70°
- R-net electronics Power Platform 120 A
- Width incl. seat 650–790 mm
- Height 1090–1170 mm
- Min. transport length 880 mm
- Min. transport height (folded backrest) 825 mm
- Weight incl. batteries 85 Ah 201 kg
- Weight of batteries 85 Ah 2×23 kg
- Seat height (with electric seat elevator) 450–750 mm
- Seat depth 370–570 mm (by 25 mm)
- Seat width 420–570 mm (by 50 mm)
- Backrest width 360/410/460/510 mm
- Backrest height 470, 545-670 mm (by 25 mm)
- Armrest height 215-330 mm
- Distance between armrests 380–480/480–580 mm
*Driving conditions and choice of battery type. Measurements are approximates and subject to change without notice.
Contact us for more information.
